FA-CMC360 IP66 High Precision Combo Metal Detector and Checkweigher for Food Industry
Introduction&Application
Fanchi-tech's integrated Combination Systems are the ideal way to inspect and weigh all in one machine, with the option of a system combining metal detection capabilities along with dynamic checkweighing. The ability to save space is an obvious advantage for a factory where room is a premium, as combining the functions can help save up to around 25% with this Combination System's footprint versus the equivalent if two separate machines were to be installed.
Technical Specifications
| Model | FA-CMC360-D32 |
| Weight Range | 5g-4kg |
| Minimum Scale | 0.1g |
| Best Checkweigher Accuracy(Зσ) | ±0.5g |
| Max Throughput | 100pcs/min |
| Line Height Options | 700, 750, 800, 850, 900, 950, +/-50mm(can be customized) |
| Weigher Platform Size(WxL) | 360x550mm |
| Metal Detector Head Size(WxH) | 450x150mm |
| Metal Detector Pass Height | 120mm |
| Best Metal Detector Accuracy | Fe≥0.8mm;Non-Fe≥1.2mm SUS≥1.5mm |
| Belt Width | 360mm |
| Run Direction(when facing HMI) | From right to left or the other way |
| Belt Type | PU Anti-static |
| Rejector | Double Arm Flipper Rejector with Lockable Reject Bin |
| Air Supply | 5-8bar(10mm outside dia) |
| Supply Voltages | 220V/1P/50 or 60Hz |
| Product Memory | 100 |
| Material of Construction | 304 Brushed stainless steel |
| Temperature Range | -10 to 40° C (14 to 104° F) |
| Humidity | 0 to 95% Relative Humidity (Non-condensing) |
| IP Rating | IP66 |
| Software Language | English(Spanish/French/Russian, etc optional) |
| Data Retrieval | Via USB Port&Ethernet Port |
| Certificates | CE/ISO9001/ISO14001 |
Product Highlights
- 1.Accurate and efficient rejection system.
- 2.Switch Products in Seconds with a Library of Stored Products up to 100
- 3.Brushless motors & proven conveyor components designed for reliable 24/7 operation
- 4.High precision digital load cell, adopt high-speed digital filtering processing technology;
- 5.Further weighing stability by platform positioning rail and enhanced conveying / weighing platforms.
- 6.Ultra-fast dynamic weight tracking and automatic compensation technology effectively Improve the detection of stability.;
- 7.Simple Operation with color touch screen, including multilevel password access and data logged events to aid traceability
- 8.For dynamic weighing of large end-of-line packaged goods including convenience foods, sachets and ready meals
- 9.Fast, Simple & Accurate Setup: type in your product details, initiate setup, and pass a pack several times and it is automatically set-up and ready to use
- 10.Detector head by hard-fill technology provides stable and high metal sensitivity.
- 11.Excellent processing and weighing by FPGA hardware filter with intelligent algorithms.
- 12.Stronger anti-interference against metal detection by multiple filtering and X-R orthogonal decomposition algorithm,
Key Components
German HBM fast load cell
Japanese Oriental motor
Danish Danfoss frequency converter
Japanese Omron optic sensors
French Schneider electric unit
US Gates synchronous belt
Food grade conveyor belt
Weinview industrial touch screen display with USB data output
Japanese SMC pneumatic unit
Technical Specification
|
Model |
FA-CMC160 |
FA-CMC230 |
FA-CMC300 |
FA-CMC360 |
|
Detecting Range |
3~200g |
5~1000g |
10~4000g |
10g~10kg |
|
Scale Interval |
0.01g |
0.1g |
0.1g |
1g |
|
Detecting Accuracy |
±0.1g |
±0.2g |
±0.3g |
±1g |
|
Detecting Speed |
150pcs/min |
150pcs/min |
100pcs/min |
75pcs/min |
|
Weigher Size(W*L mm) |
160x200/300 |
230x350/450 |
300x450/550 |
360x550/800 |
|
Metal Detector Head Size |
Tailored as per inspected product size |
|||
|
Metal Detector Sensitivity |
Fe≥0.6, NFe≥0.8, SUS304≥1.0 |
|||
|
Material of Construction |
Stainless Steel 304 |
|||
|
Belt Type |
PU Anti Static |
|||
|
Line Height Options |
700,750,800,850,900,950mm +/- 50mm(can be customized) |
|||
|
Operation Screen |
7-inch LCD Touch Screen |
|||
|
Memory |
100 kinds |
|||
|
Weigh Sensor |
HBM high accuracy load cell |
|||
|
Rejector |
Flipper/Pusher/Drop-down/Flapper/Air Blasting, etc |
|||
|
Air Supply |
5 to 8 Bar (10mm Outside Dia) 72-116 PSI |
|||
|
Operating Temperatures |
0-40℃ |
|||
|
Self-diagnosis |
Zero error, photosensor error, setting error, products too close error. |
|||
|
Other Standard Accessories |
Windshield cover(colorless and clear), photo sensor; |
|||
|
Power Supply |
AC110/220V, 1phase, 50/60Hz |
|||
|
Data Retrieval |
Via USB(standard), Ethernet is optional |
|||

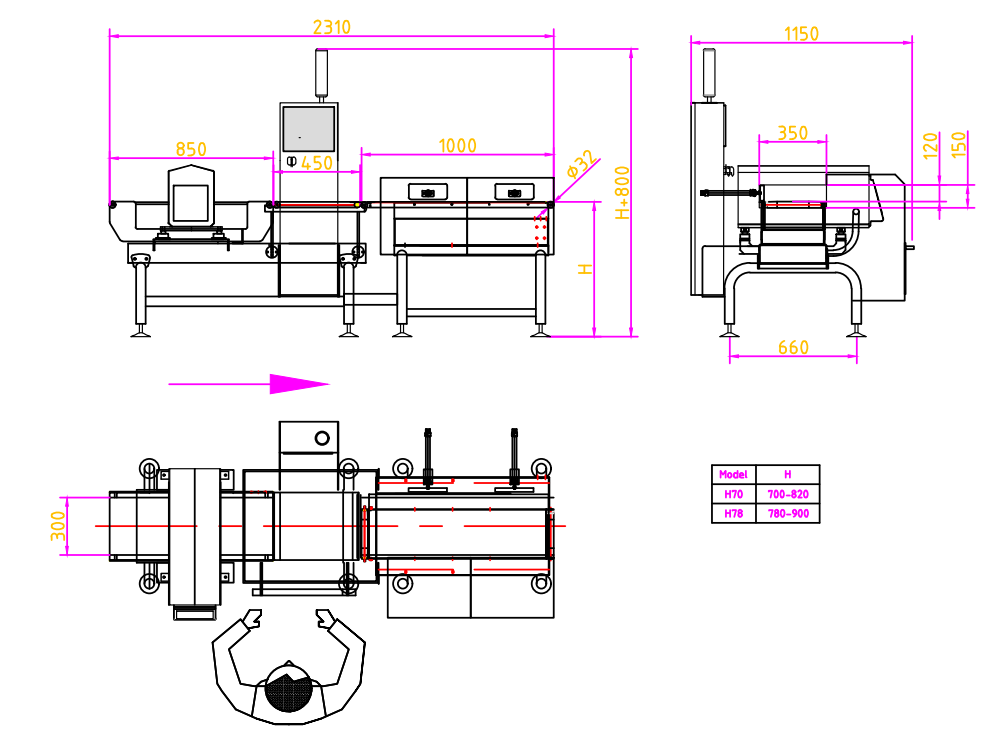

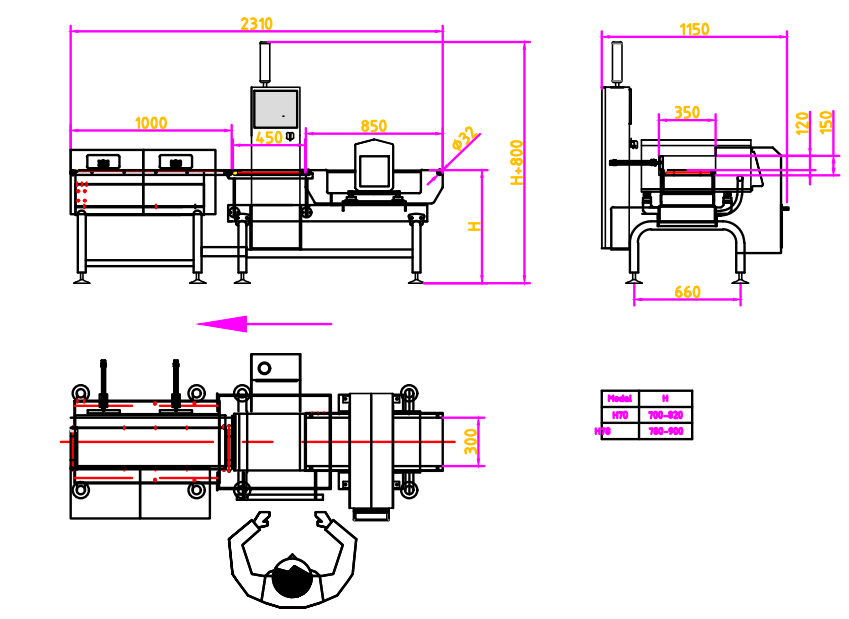

Detial
