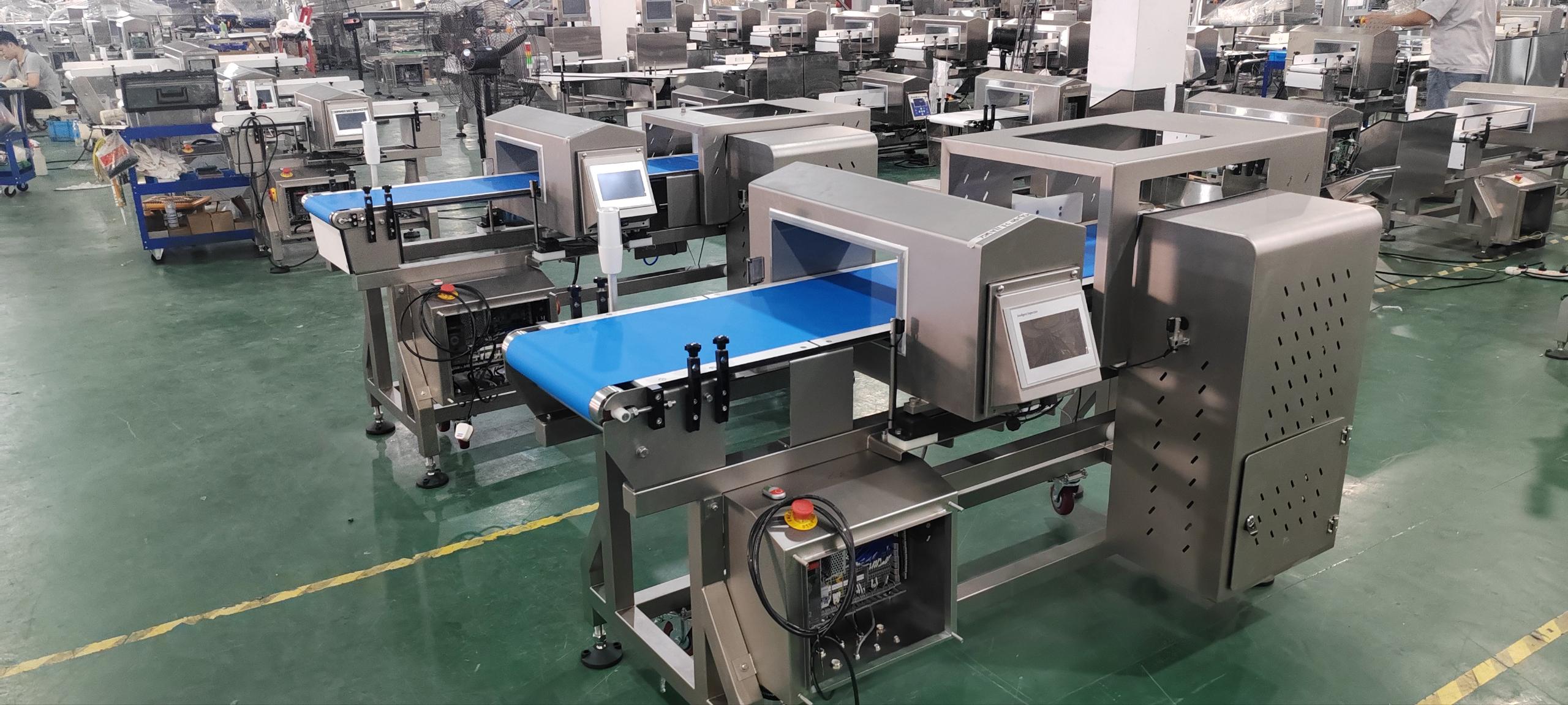

BRC metal detector from Shanghai Fanchi-tech Machinery Co., Ltd

 7099d89a7bac41faabe1f0fd40874b8



1、 Core performance parameters
Detection accuracy
Iron (Fe) sensitivity: ≤Φ 0.8mm
Sensitivity of stainless steel (SUS304): ≤Φ 1.5mm
Support detection of non-ferrous metals (such as aluminum and copper) with an accuracy of up to 1.2mm.
Detection speed
Conveyor speed: up to 70 meters per minute
Processing capacity: 140 pieces/minute (standard pieces).
Applicable product specifications
Detection channel size: width 300-500mm x height 75-100mm (customizable to 1500mm width)
Maximum bearing size: 400mm in length, 290mm in width, and 70mm in height.

2、 Advanced technological features
Multi frequency synchronous detection
Support dual frequency combination operation, synchronously optimize the detection capability for iron and high carbon steel, and reduce false alarm rates.

Anti interference design
Phase adjustment technology: automatically compensates for the “product effect” of salt/moisture containing products, avoiding interference from moisture or conductive materials.
Anti deviation conveyor belt: Special structure ensures high-speed stability during operation.

Intelligent control system
Automatic learning function: Only 2 good product samples are needed to generate detection benchmark parameters, simplifying the debugging process.
Data traceability: Supports RS-485 communication and uploads real-time detection records to the production management system.

3、 Compliance and reliability
Protection level
Standard IP65 dustproof and waterproof

Material and Sanitary Design
All stainless steel body (304/316L), in compliance with food contact material safety standards.

BRC certification adaptability
Meet the mandatory testing requirements for metal foreign objects in HACCP, BRCGS, and IFS certifications, and provide complete calibration reports and verification documents.

4、 Typical application scenarios
Food production line integration: Real time online detection of filling and pre packaging processes.
Exclusion scheme: Optional blocking arm, blowing or flipping plate removal devices can be selected to match different packaging forms.
High risk category protection: baby food, meat processing, baking materials and other metal contaminated highly sensitive areas.

5、 The above parameters strictly benchmark against BRC certification standards to ensure that enterprises pass audits and reduce recall risks.


Post time: Jul-18-2025
