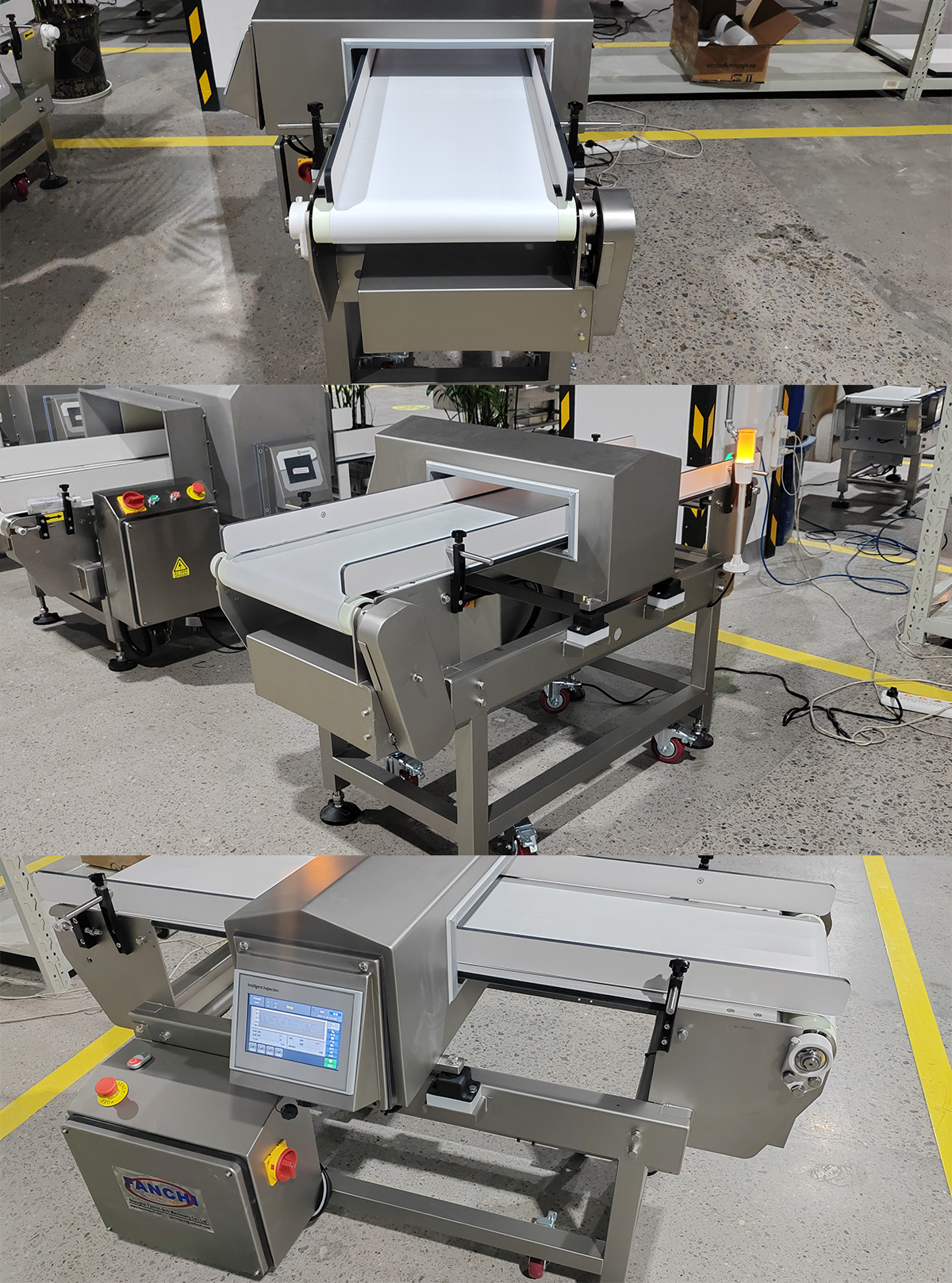

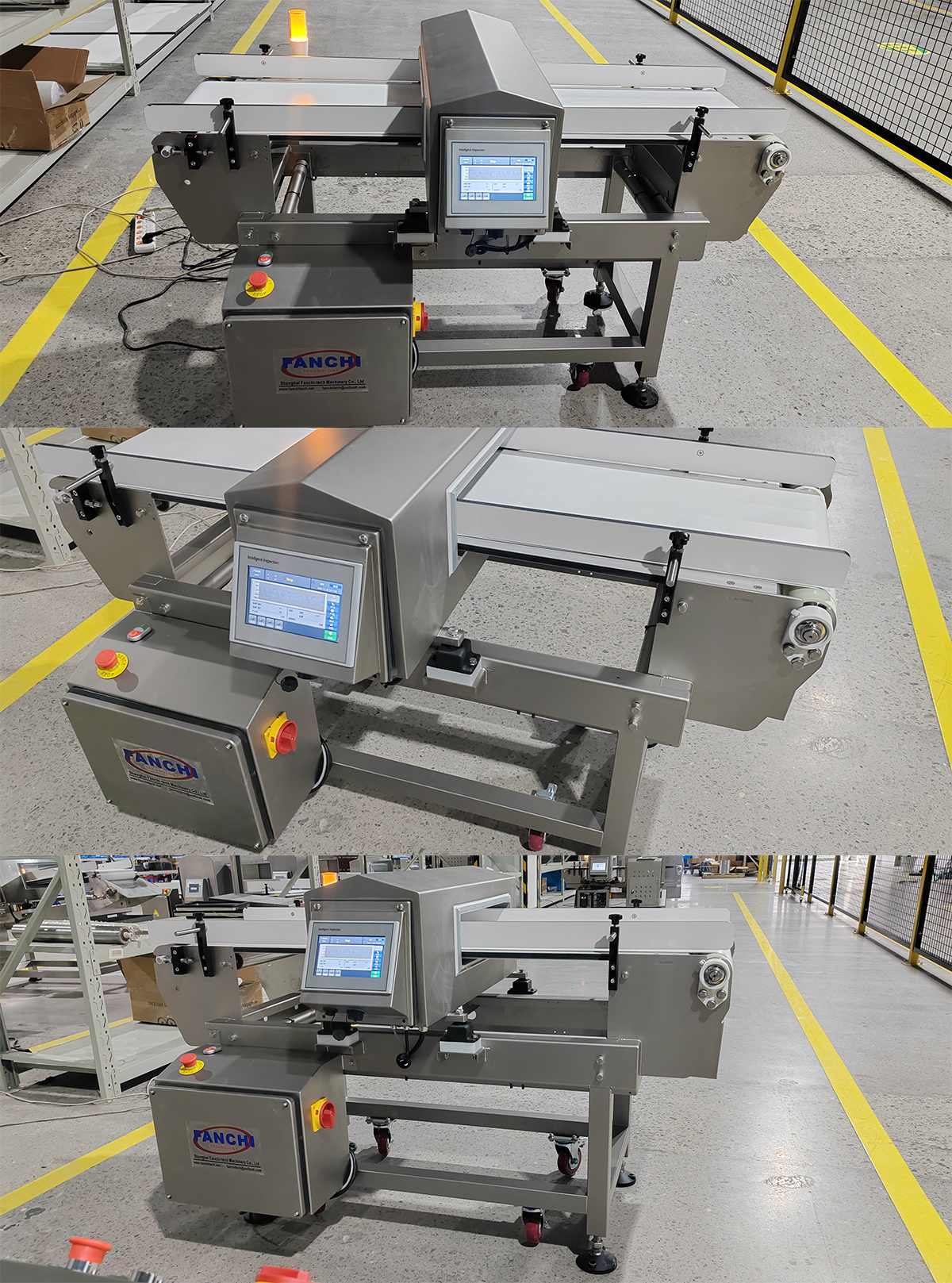

FA-MD4512 Metal Detector: Zero-Tolerance Metal Contamination Control for Food Packaging Lines
The U.S. FDA reports that metal contamination accounts for 32% of food product recalls globally—costing manufacturers an average of $1.2 million per incident, not including irreversible brand damage. For food processors packaging baked goods, frozen meals, snacks, or pre-portioned proteins, a reliable metal detector isn’t just equipment—it’s a non-negotiable line of defense. Shanghai Fanchi-tech Machinery Co., Ltd.’s FA-MD4512 Industrial Metal Detector is engineered to eliminate this risk, as proven by its seamless integration into the production lines of BakeFresh, a leading European artisanal bakery with 12 facilities across Germany and France.
Customer Success: BakeFresh Cuts False Alarms by 98% & Eliminates Recall Risks
BakeFresh faced a critical challenge with their legacy metal detection system: frequent false alarms triggered by the high-moisture content of their signature sourdough loaves and the aluminum foil in their pastry packaging. This issue slowed production by 22%—wasting 1,500+ hours annually on line resets—and failed to detect a 0.4mm stainless steel fragment in a batch of packaged croissants, leading to a voluntary recall in 2023.
“We needed a detector that could distinguish between our product’s natural properties and real contaminants,” explains Markus Weber, BakeFresh’s Global Quality Director. “After testing three suppliers, the FA-MD4512 stood out. Its multi-frequency technology ignored our sourdough’s moisture signals, and within the first 30 days, we saw zero false alarms. Most importantly, during a routine validation test, it flagged a 0.3mm wire fragment from a mixer blade—something our old system would have missed.”
Since installing 15 FA-MD4512 units across their lines, BakeFresh has:
- Reduced production downtime related to metal detection by 22%
- Achieved 100% compliance with EU 178/2002 food safety regulations
- Eliminated contaminant-related customer complaints (down from 8/quarter to 0)
- Cut quality control labor costs by 15% (thanks to automated data logging)
Core Technologies: Engineered for Food Production Realities
The FA-MD4512 isn’t just a “detector”—it’s a solution built for the messy, high-volume realities of food packaging. Its design addresses the three biggest pain points for processors: product interference, hygiene compliance, and line integration.
1. Multi-Frequency Adaptive Detection (MFAD) Technology
Unlike single-frequency detectors that struggle with conductive or high-moisture products, the FA-MD4512 features 5 adjustable frequency bands (50kHz–1MHz) and auto-calibration. It analyzes product signals in real time, distinguishing between:
- Natural product properties (moisture, salt content, conductive packaging)
- Ferrous metals (e.g., iron fragments from conveyor belts)
- Non-ferrous metals (e.g., copper wire from electrical components)
- Stainless steel (the most common and hard-to-detect contaminant in food processing)
Detection sensitivity is tailored for practical food production needs: 0.8mm ferrous, 1.2mm stainless steel, and 1.0mm non-ferrous metals—fully meeting the strict requirements of FDA, EFSA, and SQF 2000 standards for packaged food safety.
2. Hygienic Design for Food-Grade Environments
Every component of the FA-MD4512 is built to withstand daily washdowns and meet EHEDG (European Hygienic Engineering & Design Group) guidelines:
- 304 stainless steel housing with a smooth, crevice-free surface (prevents bacteria buildup)
- IP65 ingress protection rating (resists splashing water and dust intrusion, suitable for standard food processing environments)
- Food-safe conveyor belt (FDA-approved polyurethane, easy to remove and sanitize)
- Sealed control panel (protects electronics from cleaning chemicals and moisture)
3. Flexible Integration & Automated Compliance
The FA-MD4512 adapts to your line—whether you’re packaging 50g cookie packs or 2kg frozen lasagna trays. Key features include:
- Adjustable aperture (450mm width × 120mm height) with optional extensions for larger products
- Variable conveyor speed (0–60m/min) to sync with high-volume packaging machines
- 100+ product profile storage (save settings for different SKUs, cut changeover time to 60 seconds)
- Automated data logging (USB/Ethernet export) with time-stamped inspection records—critical for audit trails
- Configurable reject systems (air blast, pusher, or diverter) to minimize product waste
Why Fanchi-tech? More Than Equipment—A Partner in Compliance
At Shanghai Fanchi-tech, we understand that food safety is a 24/7 commitment. When you choose the FA-MD4512, you get more than a detector—you get a support system tailored to global food processors:
- Pre-Sales Engineering: Our team conducts free line assessments to optimize detector placement and configuration (e.g., avoiding electromagnetic interference from nearby mixers).
- On-Site Validation: We provide on-site installation, calibration, and operator training—including a full validation test with your actual products.
- Global After-Sales Support: 24/7 technical support via phone/email, with local service partners in 18 countries (response time ≤4 hours for critical issues).
- Compliance Documentation: Full CE, FDA, and ISO 9001 certification packages—ready for your next customer or regulatory audit.
Take the Next Step: Secure Your Lines with a Free Demo
Don’t let outdated metal detection put your brand at risk. Contact Kerry Wang, our Food Industry Specialist, to schedule a free virtual demo of the FA-MD4512—we’ll even test your product samples (free of charge) to prove its performance.’
Shanghai Fanchi-tech Machinery Co., Ltd.
Contact: Kerry Wang (Food Industry Specialist)
Email: fanchitech@outlook.com
Website: www.fanchitechnology.com
Post time: Dec-01-2025
