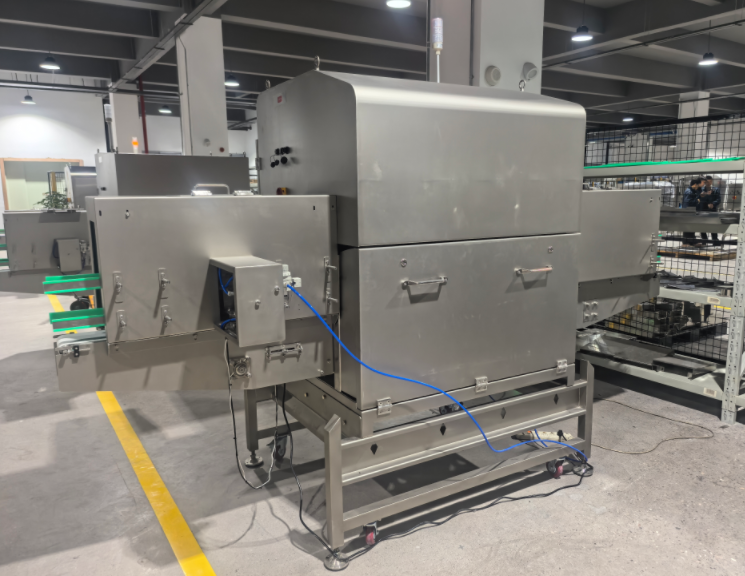

FA-XIS1625D Dual-Beam X-ray Inspection System: Securing Contaminant-Free Canned Products for Global Food Producers
For canned food producers—whether manufacturing baked beans, tomato sauce, preserved meats, or canned vegetables—product safety inspection comes with unique hurdles. Metal can packaging creates blind spots for single-beam X-ray systems; dense, varied contents (like thick sauces or mixed ingredients) obscure micro-contaminants; and strict global standards (HACCP, FDA, GFSI) demand zero tolerance for hazards. To solve these pain points, global canned food manufacturers turn to Shanghai Fanchi-tech Machinery Co., Ltd.’s FA-XIS1625D Dual-Beam X-ray Inspection System—engineered exclusively for the precision and efficiency of canned product lines.
Tailored for Canned Product Challenges
The FA-XIS1625D (a flagship model in Fanchi-tech’s FA-XIS series) addresses the core gaps of canned inspection with its dual-beam X-ray technology. Unlike single-beam systems that scan from one angle (leaving can seams or thick content layers uninspected), its 80kV dual-beam (350/480W max power) delivers cross-sectional, multi-angle scanning. This eliminates blind spots caused by metal can packaging, ensuring every corner of a can—from sealed lids to bottom rims—is checked for contaminants like:
- Tiny metal fragments (e.g., from processing equipment)
- Glass shards or ceramic bits
- Calcified bone (in canned meats)
- Dense plastic particles
Its 160×250mm tunnel size accommodates a full range of canned formats (from 100g snack cans to 2kg family-sized containers), while a belt speed range of 10–70m/min syncs seamlessly with high-throughput production lines. The 25kg load capacity handles heavier canned batches without compromising stability, and the PU anti-static belt is food-safe, anti-wear, and easy to sanitize—critical for frequent washdowns in food facilities.
Customer Success: A U.S. Canned Beans Producer
A mid-sized U.S.-based canned beans manufacturer faced recurring issues with single-beam X-ray systems: tiny metal fragments hidden behind can seams were slipping through, leading to customer complaints and audit risks. After switching to the FA-XIS1625D, their quality control team saw immediate results:“The dual-beam technology is a game-changer,” says their Quality Control Manager. “We no longer stress about can seam blind spots—even 0.3mm stainless steel bits in thick bean sauce are detected instantly. The 17-inch touchscreen is so intuitive, our line operators mastered it in 30 minutes, and the 200 product profiles let us switch between can sizes in seconds. We haven’t had a single contaminant-related issue since installation.”
Core Advantages of the FA-XIS1625D
Built for food-grade durability and compliance, the FA-XIS1625D combines performance with practicality:
- Food-Safe Construction: Made of 304 stainless steel, it resists corrosion from washdowns and meets global food hygiene standards.
- Industry-Leading Sensitivity: Detects as little as 0.3mm stainless steel fragments, 0.3×2mm wire, and 1.5mm glass/ceramic balls—critical for micro-contaminant capture.
- User-Friendly Operation: A 17-inch LCD touchscreen stores 200+ product profiles, reducing line changeover time.
- Compliance-Ready: USB/Ethernet data retrieval simplifies audit trails, and the system meets strict radiation safety standards (EN 61010-2-091, CFR 21 part 1020.40).
- Customizable Configuration: Line height options (600–900mm, ±50mm) and configurable rejectors (air blast or pusher) adapt to unique production line setups.
Partner with Fanchi-tech for Canned Product Safety
At Shanghai Fanchi-tech Machinery Co., Ltd., we prioritize tailored solutions and responsive support for canned food producers worldwide. The FA-XIS series is backed by pre-sales line assessment, on-site installation training, and 24/7 post-sales technical support.
To learn how the FA-XIS1625D can secure your canned product lines and streamline compliance, contact Kerry Wang today:
- Email: fanchitech@outlook.com
- Website: www.fanchitechnology.com
Post time: Nov-28-2025
