Fanchi-tech Pipeline Metal Detector: Precision Contamination Control for Liquid & Semi-Liquid Sauce Production
For manufacturers of liquid and semi-liquid sauces, dressings, and condiments, even the smallest metal fragment can trigger costly recalls, damage brand reputation, and erode consumer trust. SauceCraft Global, a leading producer of premium tomato sauces, salad dressings, and cooking pastes in Canada, turned to Shanghai Fanchi-tech Machinery Co., Ltd. to solve its metal detection challenges. By deploying our Fanchi-tech Pipeline Metal Detector, SauceCraft eliminated contamination risks, reduced waste, and secured long-term compliance with Canadian and global food safety standards.
The Challenge: Metal Contamination in Liquid Sauce Processing
SauceCraft Global produces over 60,000 liters of liquid and semi-liquid sauces daily, including tomato ketchup, mayonnaise, curry pastes, and salad dressings. In early 2025, a 0.8mm stainless-steel fragment from a mixing blade was found in a batch of tomato sauce, triggering a regional recall that cost the company CAD 52,000 in direct expenses and damaged its relationship with a major Canadian grocery chain.
The company’s legacy metal detection system exposed critical flaws:
- High False Reject Rates: The high moisture, salt, and organic content of sauces created strong electromagnetic interference, leading to false rejects of 15% of production—wasting 9,000 liters of qualified sauce weekly.
- Low Sensitivity: The old system failed to detect metal fragments smaller than 1.2mm, missing common contaminants from mixing blades, pumps, and processing equipment.
- Poor Integration: Standard belt-type detectors were incompatible with liquid processing lines, forcing manual inspection of 30% of batches and slowing production by 22%.
- Hygiene Risks: The old machine’s crevice-ridden design was difficult to clean, creating bacterial growth risks and failing CFIA (Canadian Food Inspection Agency) audits.
“Our sauces are crafted with fresh ingredients, but metal detection was our biggest liability,” says Lisa Chen, Quality Director at SauceCraft Global. “We needed a pipeline-integrated, sensitive, and hygienic system that could handle our liquid and semi-liquid products without slowing our lines.”
The Solution: Fanchi-tech Pipeline Metal Detector for Sauce Production

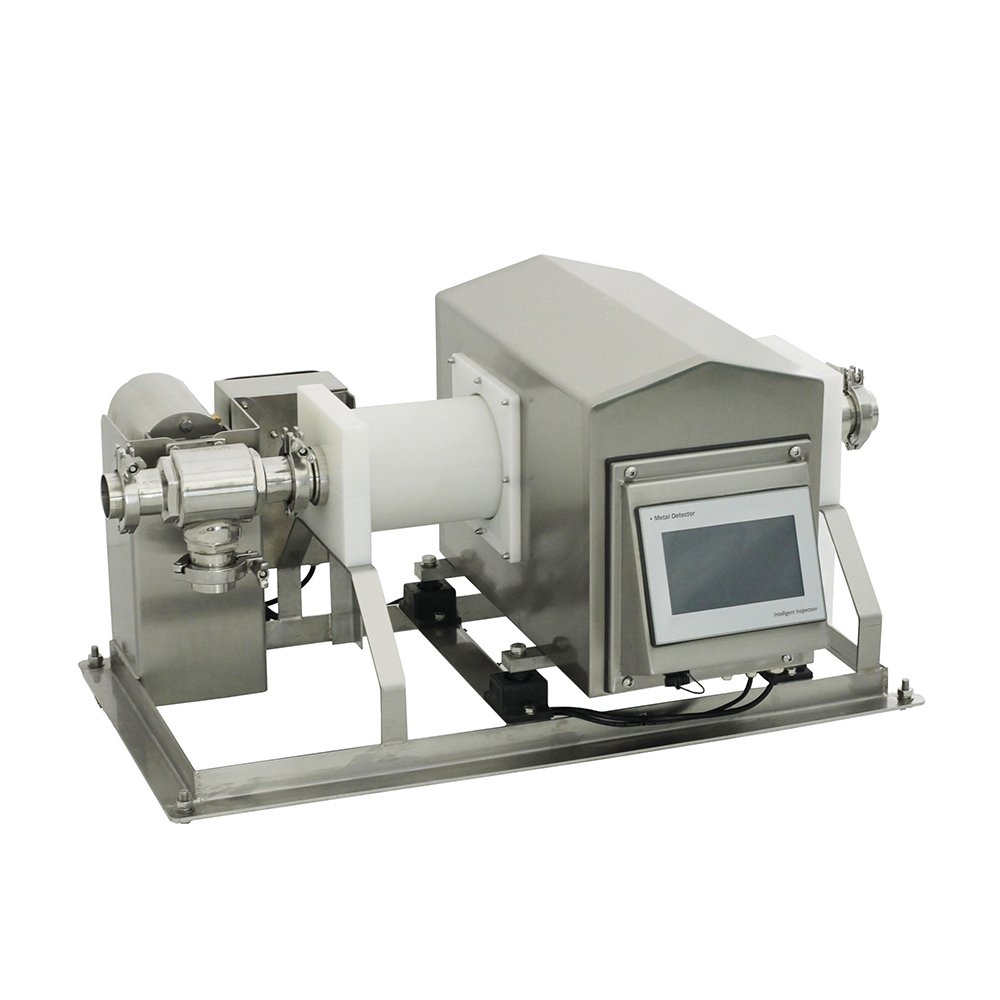

After evaluating 7 competitors, SauceCraft selected the Fanchi-tech Pipeline Metal Detector for its seamless integration, high sensitivity, and food-grade construction. As shown in our product photos, the Fanchi-tech Pipeline Metal Detector features a 304 stainless steel frame, food-grade white pipeline insert, touch-screen control panel, and stainless steel pipe connections—all engineered for liquid and semi-liquid sauce processing lines.
1. Ultra-High Sensitivity & Low False Rejects for Liquid Products
The Fanchi-tech Pipeline Metal Detector uses dual-frequency digital detection technology and adaptive filtering to suppress product effect interference from high-moisture, high-salt sauces. For SauceCraft’s products:
- Ferrous metal: Detects fragments ≥ 0.6mm
- Non-ferrous metal: Detects fragments ≥ 0.8mm
- Stainless steel: Detects fragments ≥ 1.0mm
This precision eliminated missed contaminants while reducing false rejects to just 0.9%, cutting weekly waste to 540 liters of qualified sauce.
2. Seamless Pipeline Integration for Liquid Processing
The Fanchi-tech Pipeline Metal Detector is designed to integrate directly into liquid processing lines, eliminating the need for manual handling or belt-based inspection:
- Stainless Steel Pipe Connections: Fits seamlessly into existing sauce processing pipelines, with standard DN50/DN80 connections for easy installation.
- Food-Grade Pipeline Insert: The white, non-metallic insert ensures hygienic product flow and prevents contamination, while being resistant to corrosion from acidic sauces.
- Compact Design: The streamlined footprint fits into tight processing layouts, with no need for additional floor space.
3. Hygienic Design & Intelligent Operation
The Fanchi-tech Pipeline Metal Detector’s crevice-free 304 stainless steel construction supports daily CIP (Clean-in-Place) processes, while its food-grade insert resists buildup of sauce residues. Key features:
- CIP Compatibility: Supports automated cleaning and sanitization, eliminating manual disassembly and reducing cleaning time by 40%.
- Fast SKU Switching: The touch-screen control panel stores 50+ product presets, enabling SKU switching in 15 seconds—down from 15 minutes with manual calibration.
- Audit-Ready Traceability: Logs 1,000,000+ inspection records, including time-stamps and batch numbers, for CFIA and third-party audits.
The Outcome: Zero Recalls & 25% Faster Production
In the 10 months since deploying 4 Fanchi-tech Pipeline Metal Detectors:
- 38 Critical Contaminants Intercepted: Detected 0.6–1.0mm metal fragments from mixing blades, pumps, and processing lines, preventing 5 potential recalls and CAD 75,000 in estimated losses.
- 94% Reduction in False Rejects: Weekly sauce waste dropped from 9,000 liters to 540 liters, saving CAD 2,100 monthly in material costs.
- 25% Faster Production: Seamless pipeline integration and fast SKU switching increased line efficiency, adding 12 hours of weekly capacity during peak demand.
- 100% Audit Compliance: Passed all CFIA and food safety audits with zero non-conformities, securing a 5-year contract extension with its largest retail partner.
“The Fanchi-tech Pipeline Metal Detector didn’t just fix our metal detection problem—it transformed our approach to food safety,” says Chen. “We now have complete confidence that every bottle of sauce leaving our facility is safe, compliant, and defect-free.”
Why Fanchi-tech’s Pipeline Metal Detector Leads in Sauce Inspection
For liquid and semi-liquid sauce manufacturers, the Fanchi-tech Pipeline Metal Detector delivers:
- Precision Detection: Captures tiny metal fragments while minimizing false rejects in high-moisture, high-salt products.
- Seamless Integration: Pipeline-integrated design fits directly into processing lines, eliminating manual handling.
- Hygienic Design: 304 stainless steel and CIP-compatible construction meet strict food safety standards.
- Intelligent Operation: Fast SKU switching and real-time data logging streamline compliance.
Secure Your Sauce Processing Lines Today
If you’re a liquid or semi-liquid sauce manufacturer facing metal contamination risks, false rejects, or integration challenges, contact Kerry Wang to arrange a free virtual demo or on-site trial of the Fanchi-tech Pipeline Metal Detector. We’ll test the unit with your specific sauce products to validate performance for your line speed and SKU mix.
Shanghai Fanchi-tech Machinery Co., Ltd.
- Email: fanchitech@outlook.com
- Website: www.fanchitechnology.com
Post time: Mar-04-2026
