How a Gravity Fall Metal Detector Improved Food Safety for Seasoning Powder Production
Introduction
In the global food seasoning industry, product safety and contamination control have become critical requirements for manufacturers supplying retail brands, foodservice companies and international distributors.
Seasoning powder products such as chili powder, curry powder, garlic powder, spice blends and instant seasoning mixes are processed through multiple stages including grinding, mixing, conveying and packaging.
During these processes, metal contamination risks may come from:
- Grinding equipment wear
- Stainless steel screen damage
- Machine components
- Maintenance tools
- Production line abrasion
For manufacturers exporting seasoning products, installing a reliable metal detection system before packaging is essential to meet HACCP, BRCGS, IFS and customer quality requirements.
Shanghai Fanchi-tech Machinery Co., Ltd. developed this gravity fall metal detector solution specifically for powder and granular food applications where continuous free-fall inspection is required.
Customer Background
A seasoning powder manufacturer producing customized spice blends for overseas food companies contacted Fanchi-tech to upgrade its final inspection process.
The customer produces:
- Chili Powder
- Garlic Powder
- Curry Powder
- BBQ Seasoning
- Instant Soup Seasoning
- Spice Blends
Products are packed into:
- Small bags
- Sachets
- Plastic containers
Production requirement:
- Continuous powder flow
- High sensitivity detection
- Minimal product loss
- Compact installation space
Existing Production Challenges
1. Metal Contamination Risk After Grinding
The customer used high-speed grinding and mixing equipment.
Although raw materials were carefully selected, contamination could still occur during processing.
Potential risks:
Ferrous Metal
From:
- Carbon steel machine parts
- Broken screws
- Equipment wear
Non-Ferrous Metal
From:
- Copper wires
- Brass components
Stainless Steel
From:
- Screens
- Cutting blades
- Mixing equipment
Because seasoning powder is consumed directly by end customers, even tiny metal particles could create serious food safety issues.
2. Limited Installation Space
The existing production line had limited space between the mixing system and packaging machine.
A traditional conveyor metal detector was unsuitable because:
- Powder products cannot be transported easily
- Additional conveyors increase cleaning work
- Production layout space was limited
The customer required a compact vertical inspection solution.
3. Powder Characteristics Affect Detection
Seasoning powders have special characteristics:
- Fine particle size
- Uneven density
- Moisture variation
- Salt content
- Conductive ingredients
A standard metal detector may experience unstable detection if not optimized for powder applications.
Fanchi-tech Gravity Fall Metal Detector Solution
Based on the product characteristics and production requirements, Fanchi-tech recommended a:

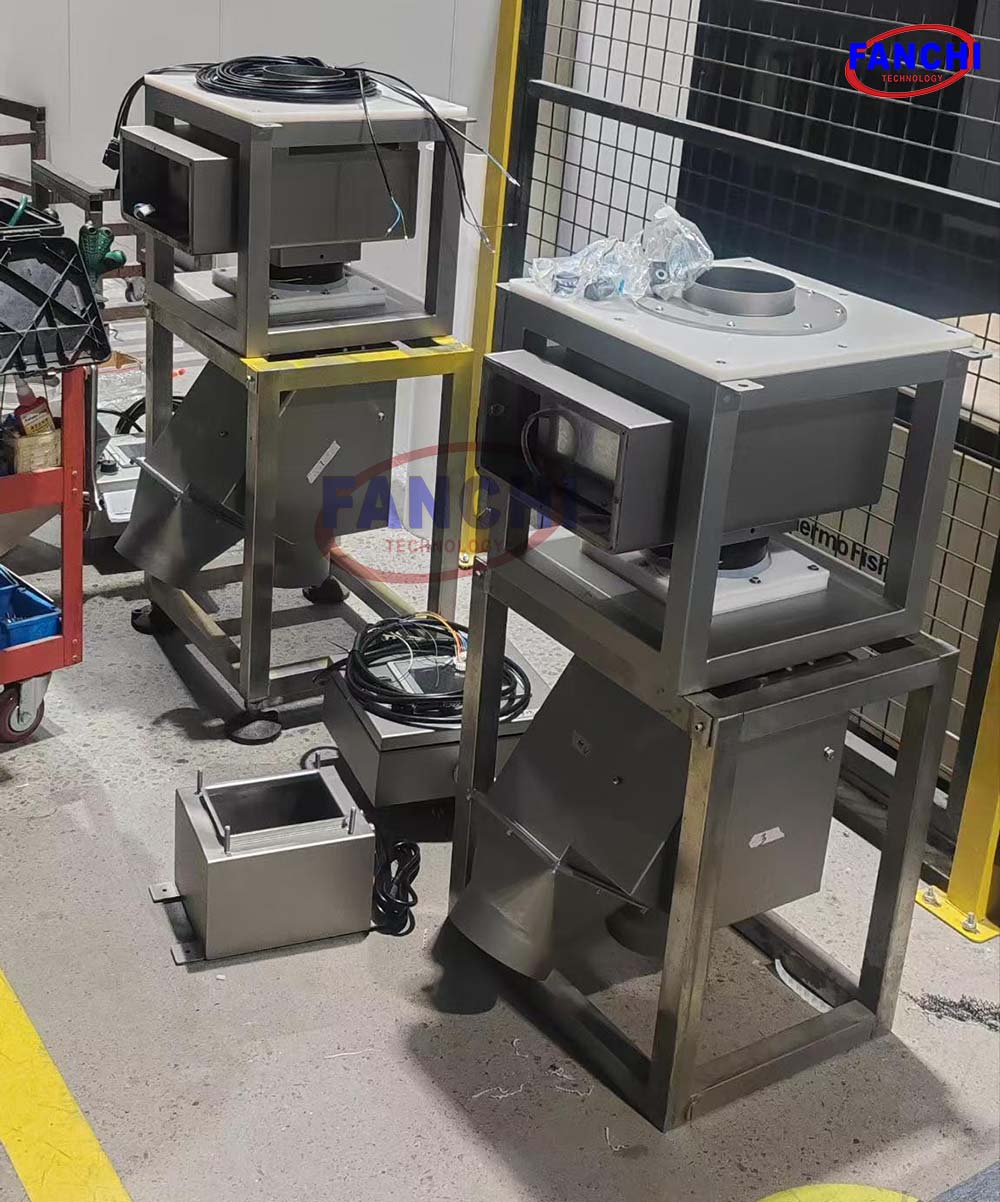

Gravity Fall Metal Detector for Seasoning Powder Inspection
The system was integrated directly into the vertical powder flow line before filling and packaging.
Machine Configuration
| Item | Specification |
|---|---|
| Application | Seasoning Powder |
| Product Type | Powder / Granules |
| Detection Mode | Gravity Fall Detection |
| Installation | Vertical Pipeline |
| Product Flow | Free Falling Material |
| Material | SUS304 Stainless Steel |
| Detection Target | Ferrous / Non-Ferrous / Stainless Steel |
| Reject Method | Automatic Pneumatic Reject |
| Control System | Digital Touchscreen |
| Structure | Food Grade Hygienic Design |
Production Line Integration
Previous Process
Mixing
↓
Storage Hopper
↓
Filling Machine
Metal inspection was missing before final packaging.
After Fanchi-tech Installation
Mixing
↓
Sieving
↓
Gravity Fall Metal Detector
↓
Automatic Reject
↓
Filling Machine
↓
Sealing
↓
Finished Product
The metal detector became a critical control point before packaging.
How The System Works
Step 1: Continuous Powder Inspection
Seasoning powder falls naturally through the detection tube.
The high-sensitivity detection coil continuously monitors the product flow.
Step 2: Contaminant Identification
When metal contamination is detected:
The system identifies:
- Metal signal strength
- Contamination position
- Product flow condition
Step 3: Automatic Reject
The contaminated powder flow is automatically diverted through the reject valve.
Only qualified products continue into the packaging process.
Customer Benefits
After installing the Fanchi-tech gravity fall metal detector, the seasoning manufacturer achieved:
Improved Food Safety Control
100% inline inspection before packaging reduced contamination risks.
Reduced Production Downtime
The vertical design minimized conveyor maintenance and simplified cleaning.
Better Space Utilization
Compared with traditional conveyor systems:
- Smaller footprint
- Easier integration
- Faster installation
Improved Export Compliance
The inspection system supported customer requirements related to:
- HACCP
- BRCGS
- Food safety audits
- Retail supplier approval
Why Choose Gravity Fall Metal Detector for Powder Products?
Compared with traditional conveyor metal detectors:
| Gravity Fall Metal Detector | Conveyor Metal Detector |
|---|---|
| Designed for powder | Mainly for packaged products |
| Direct pipeline installation | Requires conveyor |
| Compact structure | Larger footprint |
| Easy cleaning | More maintenance |
| Ideal before filling | Ideal after packaging |
Frequently Asked Questions (FAQ)
Q1: What products can use a gravity fall metal detector?
It is suitable for:
- Powder
- Flour
- Sugar
- Seasonings
- Spices
- Coffee powder
- Granules
- Chemical powders
Q2: Can it detect stainless steel contamination?
Yes.
The system can detect:
- Ferrous metals
- Non-ferrous metals
- Stainless steel fragments
Actual sensitivity depends on product characteristics and installation conditions.
Q3: Where should the machine be installed?
The recommended position is:
Before packaging equipment
or
After mixing/sieving processes.
This ensures the final product is inspected before entering consumer packaging.
Q4: Why choose vertical metal detection?
Because powder products flow naturally through pipelines, gravity fall inspection provides:
- Continuous detection
- Less product handling
- Lower contamination risk
- Easier cleaning
About Shanghai Fanchi-tech Machinery Co., Ltd.
Shanghai Fanchi-tech Machinery Co., Ltd. specializes in food inspection equipment including:
- Gravity Fall Metal Detector
- Conveyor Metal Detector
- Dynamic Checkweigher
- X-ray Inspection System
Our solutions help food manufacturers worldwide improve quality control, reduce contamination risks and meet international food safety standards.
