H1: FA-CW230 High Precision Conveyor Checkweigher Eliminates Weight Non-Compliance & Raw Material Waste for Food & Pharma Packaging Lines
For global food, pharmaceutical, nutraceutical and cosmetic manufacturers, inconsistent net content of finished packages brings irreversible losses: underweight goods trigger supermarket rejection, regulatory fines and consumer complaints; excessive filling continuously eats up raw material profits. Manual spot sampling cannot realize 100% full inspection, while low-end weighing devices suffer from unstable accuracy and frequent false rejection.
Shanghai Fanchi-tech Machinery Co., Ltd launches the mature FA-CW230 inline conveyor checkweigher, tailor-made for small & medium cartons, blister packs, sachets and pouches. Combined with full hygienic stainless steel structure, transparent safety protection cover, flexible pneumatic rejection system and complete data traceability function, this model has become the preferred quality control equipment for hundreds of manufacturers across Europe, Southeast Asia, Australia and North America.
H2: Key Structural Advantages Verified by Real Workshop Machine Photos
All structural designs are displayed on our factory real-shot pictures, fully matching actual delivery machines:
1. Food-Grade 304 Brushed Stainless Steel Whole Machine Frame, Washdown Available
The entire body, support stand and conveyor rack adopt integrated bent 304 stainless steel with seamless welding, no sanitary dead corners for powder, sauce or packaging scraps accumulation. Curved support legs plus adjustable anti-vibration leveling feet guarantee stable weighing performance even on vibration-prone production floors, fully complying with GMP, HACCP and BRC washdown requirements for food & pharma workshops.
2. Transparent Acrylic Safety Guard, Visible Full Running Process
Equipped with fully enclosed high-transparency acrylic protective cover above the weighing tunnel. Operators can observe product conveying and weighing status in real time without opening the guard; meanwhile, it prevents accidental touching of moving conveyor parts and avoids foreign matter falling into the weighing area, improving both operation safety and detection stability.
3. Independent Touch Screen Control Cabinet + Standard Safety Configuration
Vertical side-mounted control box integrates 7-inch multi-language industrial touch HMI, prominent red emergency stop button and vertical three-color tower light status indicator. Operators can store up to 100 groups of product recipes for one-click SKU switching, greatly shortening production line changeover time. Reserved USB and Ethernet data export interfaces support docking with factory MES quality management system for automatic data archiving.

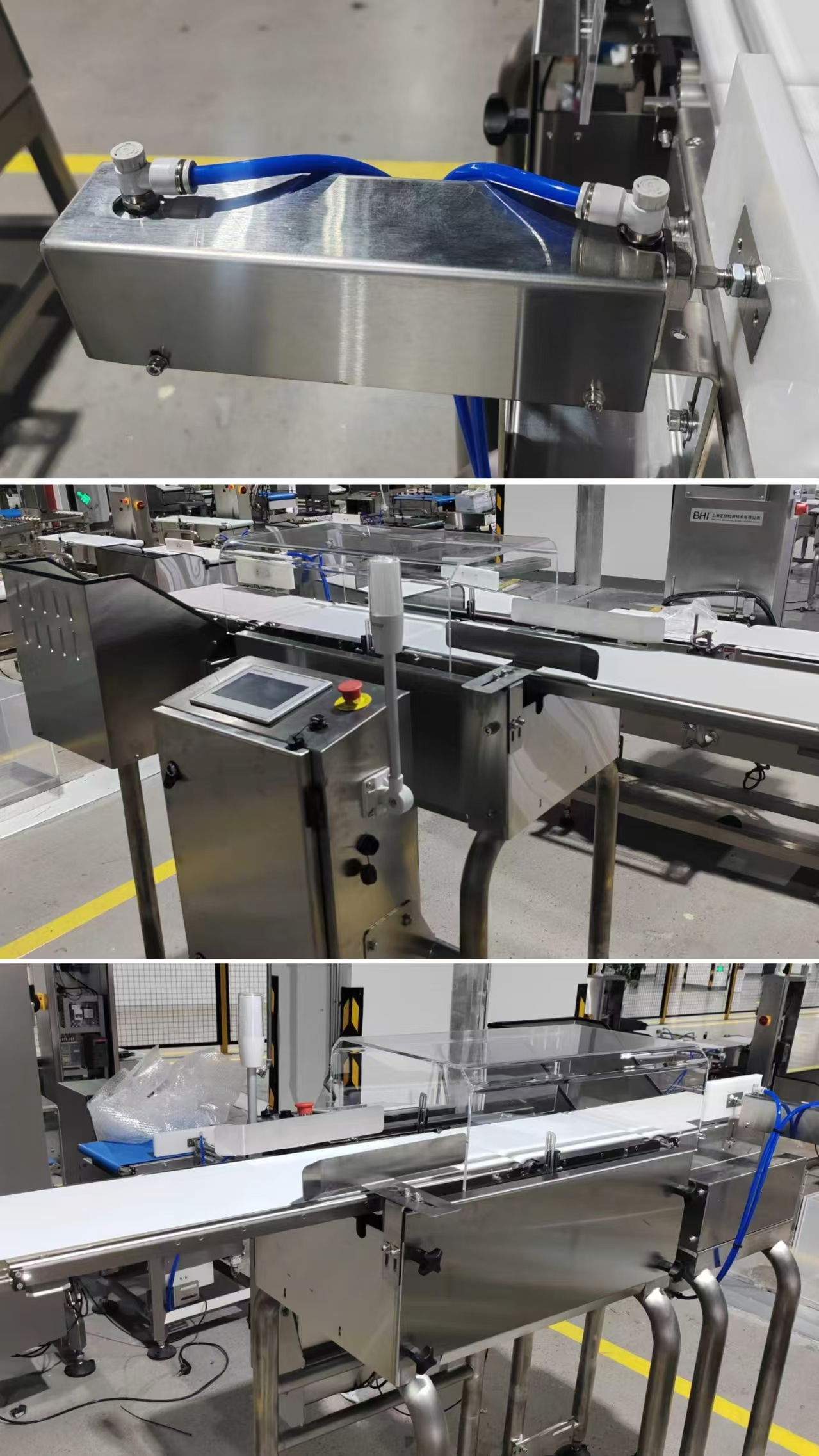

4. Pneumatic Push-Rod Automatic Rejection System (Visible Blue Air Pipe)
Standard built-in adjustable pneumatic pusher rejector with independent air circuit control (blue air tube shown on pictures). Once overweight/underweight/unqualified products are detected, the push rod gently pushes non-conforming goods into a locked reject bin without stopping the main production line. The thrust can be fine-tuned to avoid scratching fragile medicine cartons and flexible sachets.

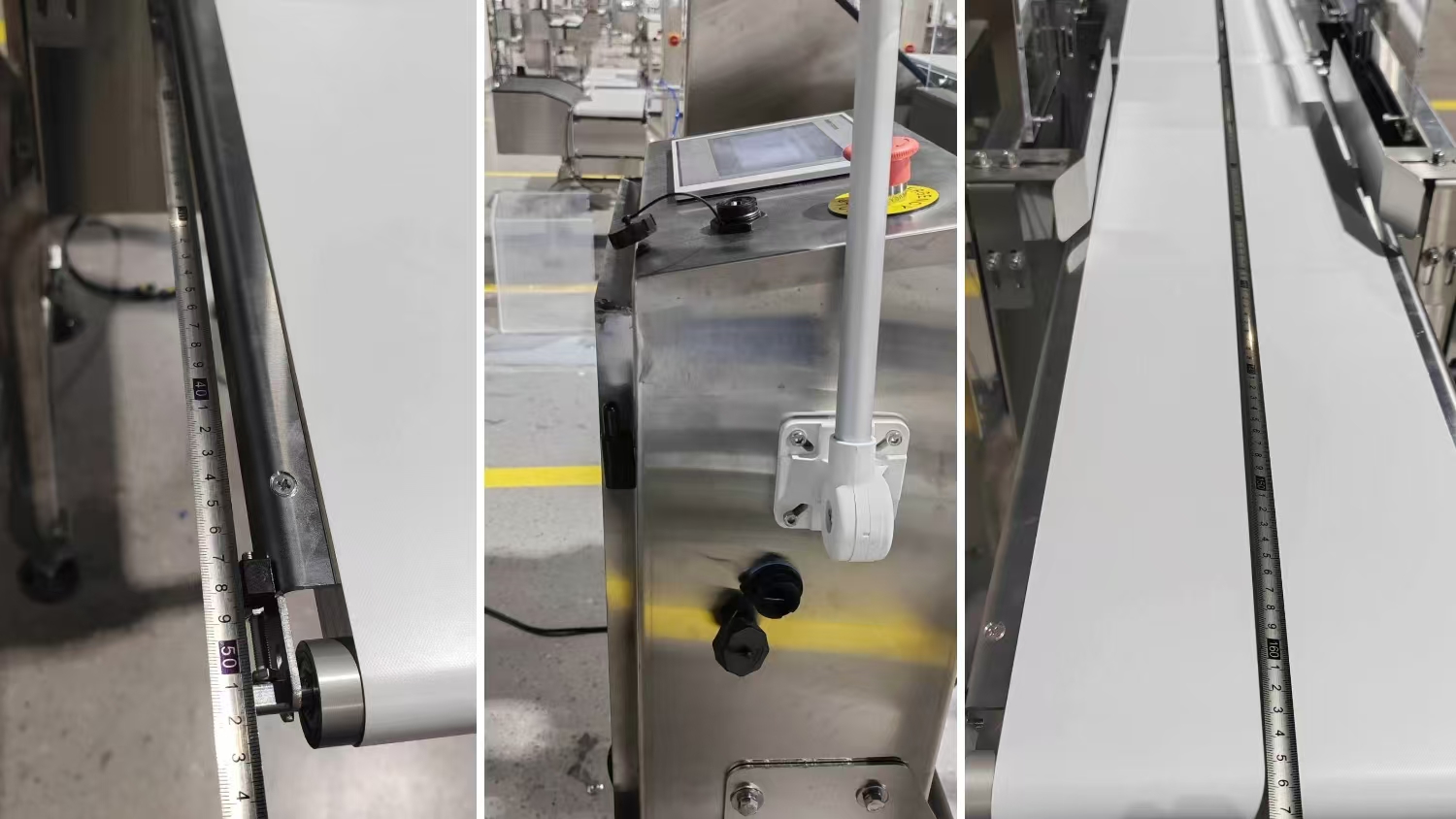

5. Wide Adjustable PU Conveyor Belt + Limit Guide Baffles
FDA-certified anti-static white PU conveyor belt with 220mm width, wear-resistant, oil-proof and easy to disassemble for deep cleaning. Adjustable side guide baffles keep products centered during transportation, preventing offset weighing errors for irregular-sized packages. The measured belt length and width support customized modification according to customers’ on-site line layout.
表格
| Item | Parameter |
|---|---|
| Model | FA-CW230 |
| Weight Detection Range | 3g ~ 200g |
| Minimum Scale Division | 0.01g |
| Best Weighing Accuracy (3σ) | ±0.1g |
| Max Throughput | 250 pcs/min |
| Max Conveyor Running Speed | 80 m/min |
| Conveyor Belt Width | 220mm |
| Line Height | 750+100mm (customizable) |
| Product Recipe Storage | 100 groups |
| Power Supply | 220V/1P 50/60Hz |
| Air Supply | 5~8bar (10mm outer diameter air connector) |
| Machine Material | 304 brushed stainless steel |
| Working Temperature | -10℃ ~ 40℃ |
| Certifications | CE, ISO9001, ISO14001 |
H2: Real Overseas Customer Application Success Case (EU Pharmaceutical Manufacturer)
Client Profile
EU MediPharm GmbH, a Germany-based OTC pharmaceutical manufacturer, produces vitamin blister cartons, probiotic sachets and oral tablet boxes (5g–185g per package), supplying national pharmacy chains and large supermarket drug counters across Germany, Austria and Switzerland.
Pre-Cooperation Pain Points
- Only 6% of finished products were manually sampled every hour; dozens of underweight medicine boxes flowed into retail terminals monthly, triggering official food & drug supervision warnings and repeated customer refunds.
- To avoid penalty risks, filling workers intentionally added extra powder raw materials, leading to a 3.1% average overfilling rate, causing annual raw material loss exceeding €76,500.
- Old weighing equipment could not automatically store inspection records, failing to provide complete weight audit reports for quarterly supplier assessment, facing the risk of being eliminated from the retailer supplier list.
Customized Solution from Fanchi-tech
After video on-site survey and actual product weighing test, our engineer team recommended 6 sets of FA-CW230 inline checkweighers, matched with gentle pneumatic push-rod rejectors. We adjusted the guide baffle spacing to fit the customer’s multi-size medicine cartons and completed signal docking with their factory MES system. Our overseas technical team finished on-site installation, calibration and operator full training within 3 working days after machine arrival.
Quantifiable Operation Results After 6 Months
- Realized 100% full automatic online inspection, zero underweight products outflow; no regulatory warning or weight-related customer complaints received ever since.
- Overfilling rate dropped sharply from 3.1% to 0.13%, saving approximately €71,200 raw material costs every year and greatly lifting finished product gross profit margin.
- Automatic continuous data logging fully meets retailer audit standards; the client smoothly passed annual pharmacy chain supplier evaluation and obtained 2 additional large long-term bulk orders.
- 4 manual sampling inspectors were reassigned to other quality control posts, cutting long-term recurring labor expenditure for packaging workshops.
“Fanchi-tech FA-CW230 checkweigher runs stably 24/7, easy to disassemble and sanitize for our pharma clean workshop. The accurate weighing and complete data recording totally solved our weight compliance headache. Remote technical support response is fast whenever we meet operation problems.”
— Mr. Thomas, Quality Control Manager, EU MediPharm GmbH
H2: High-Frequency RFQ Questions From Global Buyers
Q1: Which products and industries is FA-CW230 suitable for?
A: This conveyor checkweigher is widely applicable for:
- Pharma industry: tablet blister cartons, pill sachets, capsule boxes, probiotic small packs
- Food industry: snack pouches, chocolate boxes, condiment sachets, dried fruit small packages, cookie cartons
- Cosmetic & daily chemical: travel-size sample sachets, cream boxes, mini hand sanitizer packs
We also supply heavy-duty roller checkweigher for whole cases, pipeline metal detector for sauce processing, X-ray foreign body inspection machine as matched quality control equipment.
Q2: Can FA-CW230 link with my existing metal detector or X-ray inspection machine?
A: Yes. Our checkweigher reserves standard signal interaction interfaces, which can seamlessly connect with all Fanchi-tech metal detectors and X-ray inspection devices, forming an integrated foreign body + weight dual-inspection automatic production line, saving factory floor space and reducing repeated labor cost.
Q3: Can I customize machine size, conveyor length and rejection mode?
A: Full customization service is supported. We adjust weighing platform size, conveyor width, overall line height, reject mode (air blow / push rod / swing diverter) according to your actual product dimension, line speed and workshop layout.
Q4: What is your delivery cycle and after-sales guarantee?
A: Standard FA-CW230 models have a 7–10 working days production lead time; customized versions take 15–20 working days. All equipment enjoys 1-year full machine warranty, lifetime free remote technical support, and overseas engineer on-site service arrangement. We deliver English operation manual, operation video and complete spare parts list together with shipment.
Q5: Where can I watch real machine running test videos?
A: Visit our official YouTube channel to browse workshop test videos and overseas customer on-site operation cases:
- Factory Direct R&D & Manufacturing: More than 10 years focused on food & pharmaceutical foreign body detection and weight inspection machinery, every machine undergoes 72-hour aging test before delivery to guarantee stable long-term operation.
- Full Product Line One-Stop Solution: Complete product portfolio including metal detector, X-ray inspector, inline checkweigher, combo metal detector & checkweigher, pipeline metal detector and case heavy-duty checkweigher.
- Dedicated Global Service Team: Sales engineer Kerry provides one-on-one pre-sales layout design, free virtual product test, detailed technical drawing and factory direct quotation support.
- Complete Customs Clearance Documents: We supply CE, ISO9001, ISO14001 certificates, commercial invoice, packing list and factory test report to support smooth customs clearance for all global countries.
