For manufacturers of powders, granules, and bulk free-fall materials—including flour, spices, sugar, plastic resins, pharmaceutical powders, and animal feed—metal contamination poses a unique and costly risk. Conventional conveyor metal detectors cannot effectively inspect high-flow bulk materials, while outdated magnetic separators fail to detect non-ferrous and stainless steel contaminants. A single undetected metal fragment can lead to expensive product recalls, regulatory fines, and irreversible brand damage.
Shanghai Fanchi-tech Machinery Co., Ltd introduces the high-sensitivity gravity fall metal detector, purpose-built for free-fall bulk material inspection. With a compact vertical design, food-grade construction, and high-speed pneumatic rejection system, this model delivers reliable detection of all metal types (ferrous, non-ferrous, and stainless steel) in powders and granules, helping manufacturers worldwide meet strict food safety and quality standards.
H2: Core Design Advantages
Every structural detail shown in our workshop photos is engineered to solve the unique challenges of bulk material inspection:
1. Full 304 Stainless Steel Sanitary Construction
The entire machine frame, inlet flange, and rejection mechanism are constructed from food-grade 304 stainless steel with a smooth, crevice-free finish. No sharp edges or dead corners where powder or granule residue can accumulate, supporting quick disassembly for thorough cleaning and full compliance with HACCP, FDA, and GMP hygiene standards.
2. Food-Grade PP Isolation Detection Cavity

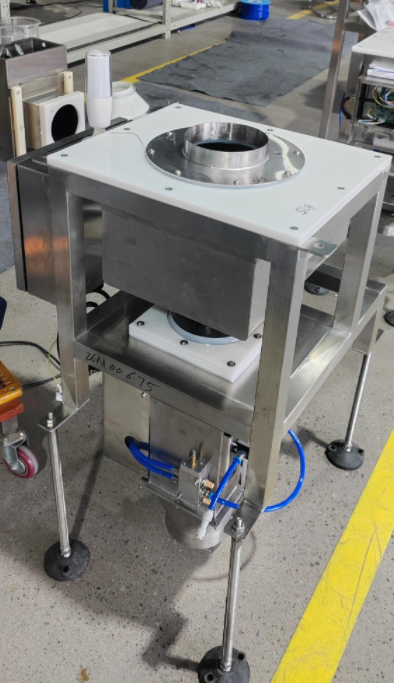

The detection chamber is lined with high-strength food-grade polypropylene (PP) insulation, as shown in the photo with the white top and bottom plates. This design minimizes product effect interference from conductive materials like salt, sugar, and spices, ensuring stable detection sensitivity even for high-moisture or high-salt bulk products.
3. High-Speed Pneumatic Flap Rejection System
Equipped with a precision pneumatic flap rejector (visible with blue air lines), the system automatically diverts contaminated material into a locked collection bin within milliseconds of detection. The flap design minimizes good product loss during rejection, typically less than 0.1% of total throughput, making it highly cost-effective for high-value materials.
4. Compact Vertical Design for Easy Line Integration
The space-saving vertical structure fits seamlessly into existing production lines, directly connecting to hoppers, mixers, packaging machines, and silos. Adjustable stainless steel leveling feet with optional casters allow for easy repositioning between lines, while the modular design simplifies installation and maintenance.
5. Intelligent Digital Control System
The integrated digital controller features an intuitive interface with multi-language support, automatic product learning, and real-time fault diagnosis. Operators can store up to 50 product profiles for fast changeovers between different materials, and the system logs all detection events for full audit traceability.
H2: Standard Technical Specification
表格
| Item | Parameter |
|---|---|
| Detection Aperture Diameter | 100mm / 150mm / 200mm (customizable) |
| Detection Sensitivity | Ferrous: ≥0.6mm; Non-ferrous: ≥0.8mm; Stainless Steel: ≥1.2mm |
| Max Throughput | Up to 10,000 kg/h |
| Rejection Mode | Pneumatic flap rejector |
| Air Supply | 5–8 bar |
| Power Supply | 220V/1P 50/60Hz |
| Machine Material | 304 food-grade stainless steel |
| Working Temperature | -10℃ ~ 60℃ |
| Certifications | CE, ISO9001, FDA food contact compliant |
Client Profile
Midwest Grain Co., a leading flour and grain processor based in Iowa, USA, produces over 50,000 tons of wheat flour, cornmeal, and baking mixes annually for retail and foodservice clients across North America.
Pre-Cooperation Pain Points
- Unreliable Contamination Detection: Their outdated magnetic separators could only detect ferrous metals, missing stainless steel and aluminum fragments from processing equipment, leading to 2–3 customer complaints per quarter.
- High Product Waste: Manual inspection of suspect batches resulted in the disposal of over 20 tons of good flour annually, costing the company more than $45,000 in lost product.
- Compliance Risks: Retail partners threatened to terminate contracts due to repeated contamination incidents, which failed to meet FSMA (Food Safety Modernization Act) requirements.
Fanchi-tech Customized Solution
After conducting material testing and line assessment, we supplied 3 sets of our 150mm diameter gravity fall metal detectors to be installed directly above their packaging lines. We customized the inlet and outlet flanges to match their existing equipment and provided on-site installation and operator training via our US-based technical partner.
Quantifiable Results After 12 Months of Operation
- Zero Contamination Incidents: The detectors successfully captured all metal contaminants, including stainless steel fragments as small as 1.2mm, eliminating all customer complaints and passing all FSMA audits.
- 98% Reduction in Product Waste: Targeted rejection of only contaminated material reduced flour waste from 20 tons/year to less than 0.5 tons/year, saving the company over $44,000 annually.
- Renewed Retail Contracts: Improved food safety performance helped the company renew all major retail contracts and secure 2 new large-scale foodservice accounts.
- Reduced Labor Costs: Automated detection eliminated the need for manual batch inspection, freeing up 2 full-time operators for other production tasks.
“We had struggled with metal contamination in our flour for years, and nothing worked as well as Fanchi-tech’s gravity fall metal detector. It catches every type of metal, wastes almost no product, and has given us complete confidence in the safety of our products. The ROI was less than 6 months.”
— Mr. Johnson, Plant Manager, Midwest Grain Co.
H2: High-Frequency RFQ Questions From Global Buyers
Q1: What types of materials is this gravity fall metal detector suitable for?
A: It is ideal for all free-flowing powders, granules, and bulk materials, including:
- Food industry: flour, sugar, spices, coffee beans, rice, cereal, animal feed
- Pharmaceutical industry: powder medicines, vitamin supplements, excipients
- Plastics industry: plastic granules, resin pellets, masterbatch
- Chemical industry: detergent powders, fertilizer granules
Q2: Can it detect stainless steel and non-ferrous metals?
A: Yes. Unlike magnetic separators that only detect ferrous metals, our digital gravity fall detector reliably identifies all metal types, including iron, aluminum, copper, brass, and 304/316 stainless steel.
Q3: Is it easy to clean and maintain?
A: Yes. The entire detection chamber and rejection mechanism can be disassembled without tools for quick cleaning. The smooth stainless steel and PP surfaces prevent material buildup, making it suitable for frequent sanitation in food and pharmaceutical facilities.
Q4: Can you customize the aperture size and connection flanges?
A: Yes. We offer aperture diameters from 80mm to 300mm and can customize inlet/outlet flanges to match your existing hoppers, mixers, or packaging machines.
Q5: Where can I watch real operation videos of this metal detector?
A: Visit our official YouTube channel to watch workshop test videos and customer on-site operation cases:
- Industry-Specific Expertise: 12+ years focused on food and pharmaceutical inspection equipment, with deep experience in bulk material processing applications.
- Rigorous Factory Testing: Every gravity fall metal detector undergoes 48 hours of continuous operation testing and sensitivity calibration with actual customer materials before delivery.
- Global Technical Support: We provide remote technical support worldwide and have local partners in North America, Europe, and Southeast Asia for on-site installation and service.
- Full Product Line Solution: We also offer pipeline metal detectors, conveyor metal detectors, X-ray inspection systems, and checkweighers to provide a complete quality control solution for your production line.
