Combination Metal Detector and Checkweigher: One Line, Two Checks
Two things get a packaged-food product pulled from the shelf: a metal contamination, and a wrong pack weight. Most plants run two separate machines for them — two belts, two control panels, two spots on the floor, two sets of operators to train.

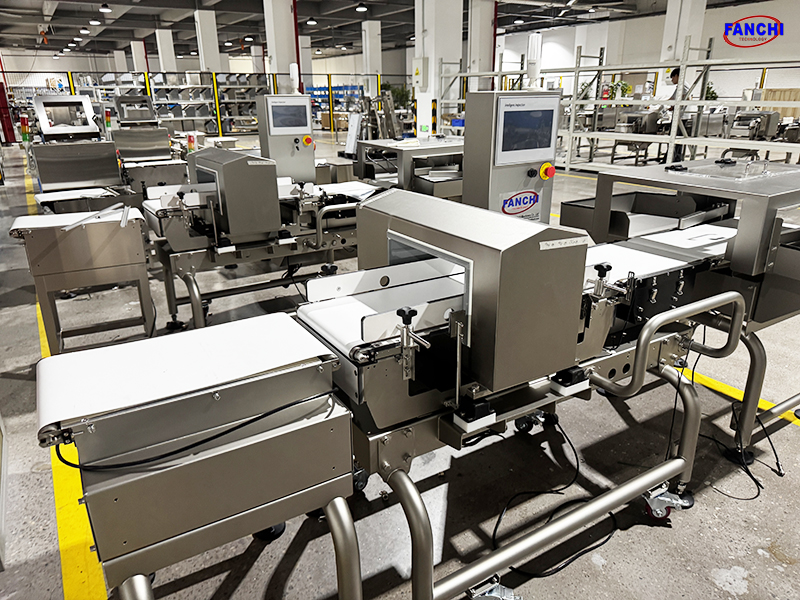

The Fanchi-tech combination unit in our Shanghai photo solves both at once: the pack passes through the metal detector head first, then over the weighing section on the same conveyor line, and a rejector diverts the pack if it fails either test. One footprint, one operator interface, one supplier.
What the Combo Does In One Pass
- Pack enters on the FDA food-grade PU belt.
- Metal check — passes through the FA-MD-II detector head; ferrous, non-ferrous and stainless metal is detected.
- Weight check — rides onto the FA-CW weighing section; the load cell reads underweight/overweight.
- Any failure triggers the matched rejector into the chute; clean packs continue to packing.
- Metal and weight data log together for one audit record.
Metal Detection Module (FA-MD-II)
| Channel Width | 300 / 400 / 500 / 600mm |
|---|---|
| Fe sensitivity | Φ0.6–2.0mm |
| SUS304 sensitivity | Φ1.2–3.0mm |
| Belt speed | 5–40m/min |
| Load capacity | 5–50kg |
Detects ferrous, non-ferrous and stainless steel contamination in finished packaged food.
Checkweighing Module (FA-CW)
| Model | FA-CW300 | FA-CW360 | FA-CW450 |
|---|---|---|---|
| Weighing Range | 10~4000g | 10g~10kg | 10g~10kg |
| Scale Interval | 0.1g | 1g | 1g |
| Accuracy | ±0.3g | ±1g | ±1g |
| Speed | 150pcs/min | 120pcs/min | 80pcs/min |
Why Choose a Combination Unit Over Two Separate Machines
- Saves floor space — detector and weigher share one frame and one belt run
- Saves cost — one machine, one installation, one control panel instead of two
- Consistent data — metal result and weight result are linked to the same pack record
- Fewer points to maintain — standard off-the-shelf parts, local technician serviceable
- Same rejection logic — one rejector cleans both fault types without confusing good packs
Built-In Across the Series
- 304 brushed stainless steel construction
- FDA food-grade PU conveyor belt
- 100 product recipes for fast changeover
- Multi-language software — English, Spanish/French/Russian optional
- Data export via USB / Ethernet
- CE and ISO9001 certified
- Reject options: Air Blast, Pusher, Drop Down, Flipper, Slide Carrier and more
Suitable Applications
Biscuits, crackers and snack packs
Nuts, dried fruit and confectionery bags
Ready meals, frozen food and sauce pouches
Chocolate and candy bars
Sealed cartons, jars and small cases
Why Buy Direct from Fanchi-tech
Shanghai Fanchi-tech Machinery Co., Ltd. has built food inspection equipment since 2010 and ships metal detectors, checkweighers and X-ray systems to 30+ countries. The engineer you contact builds your machine — no middleman. Every unit is tested on our floor before shipment, backed by a 12-month parts and service warranty.
Frequently Asked Questions
Can it reject both a metal-contaminated and an underweight pack? Yes. The rejector triggers on either fault, and the reason is logged so you know why each pack was removed.
Which combination for a 500g snack bag at 120/min? FA-MD-II 400mm channel + FA-CW300 weighing module. Send the sample pack for a combined test.
Does it link weight and metal data for audits? Yes. Both results are stored per pack and exportable via USB/Ethernet for HACCP records.
Can we later add an X-ray instead of the metal head? We supply X-ray, metal detector and checkweigher as separate and combined lines. Tell us your contaminant risk and we design the right configuration.
Test Your Pack on the Combined Line
Send sample packs and your weight target. We run them through both modules on our floor and send back the combined metal and weight report before you order.
