Food Grade Conveyor Metal Detector: Reliable Foreign Body Control for Snack, Bakery & Packaged Food Production Lines

Keywords: food grade conveyor metal detector, snack food metal detector, bakery metal inspection machine, packaged food metal detector, aluminum foil package metal detector, food industry metal detector with rejector, HACCP compliant metal detector

Across the global food manufacturing industry, metal foreign body contamination remains one of the top causes of product recalls, retailer penalties and brand reputation damage. For producers of snacks, baked goods, confectionery, seasonings and ready-to-eat foods, high moisture, high salt content and aluminum foil/metallized film packaging create strong product effect interference, causing conventional metal detectors to trigger frequent false rejects, massive raw material waste and even missed metal shavings from mixing, slicing and packaging equipment.

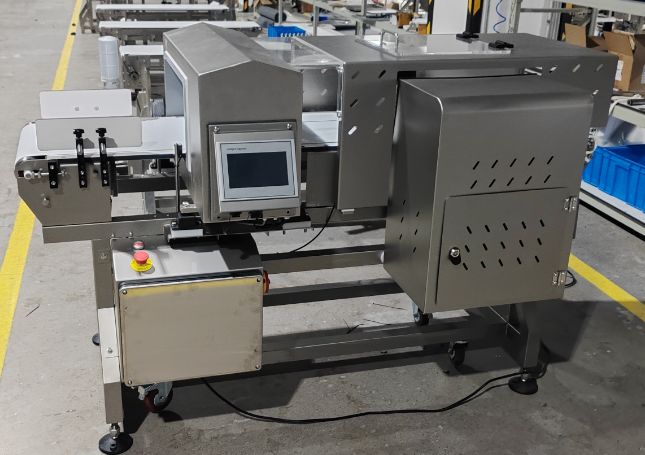

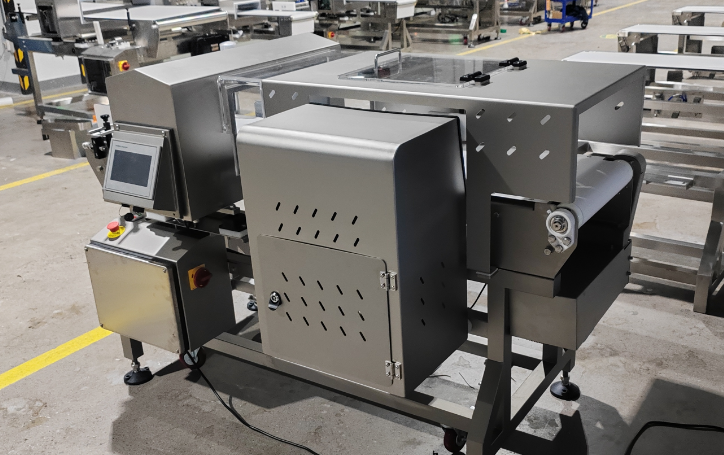

Shanghai Fanchi-tech Machinery Co., Ltd. presents the food-grade multi-frequency conveyor metal detector, engineered exclusively for packaged food production scenarios. As shown in our factory real-shot photos, the machine adopts a full 304 stainless steel sanitary frame, digital intelligent detection algorithm, automatic pneumatic rejection system and user-friendly touch control, which effectively solves the pain points of low detection accuracy and high false rejection rate for food enterprises. It has been widely installed in snack factories, bakeries and condiment plants in Southeast Asia, the Middle East, Europe and North America.

Core Design Advantages (100% Matching Factory Production Photos)

1. Full 304 Stainless Steel Sanitary Frame, Washdown & HACCP Compliant

The whole machine body, detection tunnel, conveyor frame and support legs are made of food-grade 304 brushed stainless steel with seamless welding, no sharp edges or hidden gaps where food crumbs, powder or grease can accumulate. The smooth surface supports daily high-pressure water washing and disinfectant spraying, fully complying with HACCP, BRC, FDA and EU food hygiene standards.

Equipped with lockable universal casters and adjustable anti-vibration leveling feet, the detector can be flexibly moved between different production lines and stably fixed on uneven workshop floors, effectively filtering vibration interference from upstream packaging and filling equipment.

2. Multi-Frequency Digital Detection Technology, Strong Anti-Product Effect Performance

Adopting advanced dual-frequency adaptive detection algorithm, the machine can automatically identify and suppress the product effect signal of food materials. It maintains stable and accurate detection for high-moisture cakes, high-salt seasonings and aluminum foil/metallized film packaged snacks, and can effectively identify ferrous, non-ferrous and 304/316 stainless steel metal fragments.

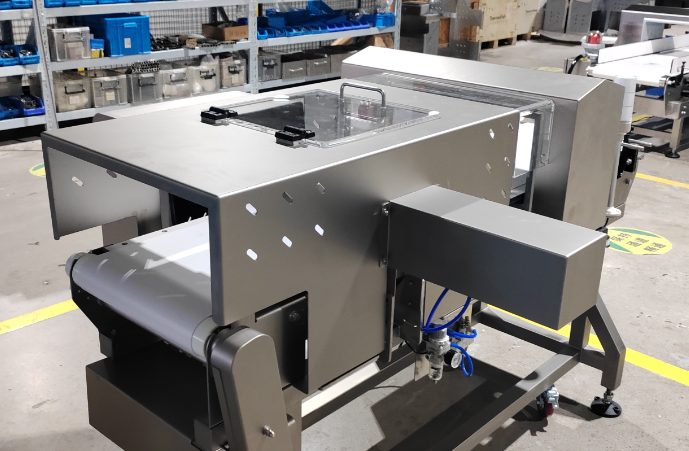

The top of the detection tunnel is designed with a flip-up transparent cover with a handle, so operators can quickly open the tunnel for internal cleaning and daily maintenance without disassembling the whole machine, greatly reducing maintenance downtime.

3. Intelligent Touch Control System, Full Data Traceability

The side-mounted independent control cabinet is equipped with a 7-inch industrial color touch screen with multi-language support (English, Spanish, French, Russian, etc.). It can store up to 100 sets of product formulas, realizing one-click switching for different food SKUs and greatly shortening line changeover time.

Standard configuration includes three-color tower status indicator, prominent emergency stop button and fault self-diagnosis alarm function. All detection data, including total output, rejection quantity and fault records, can be exported via USB or Ethernet port, providing complete audit data for third-party inspection and retailer supplier audit.

4. Food-Grade PU Belt + Pneumatic Push-Rod Automatic Rejector

The white food-grade anti-static PU conveyor belt is oil-resistant, wear-resistant and easy to disassemble for deep cleaning, which will not scratch or contaminate food packaging. Adjustable side guide baffles keep products running in the center of the detection tunnel, avoiding detection deviation caused by product offset.

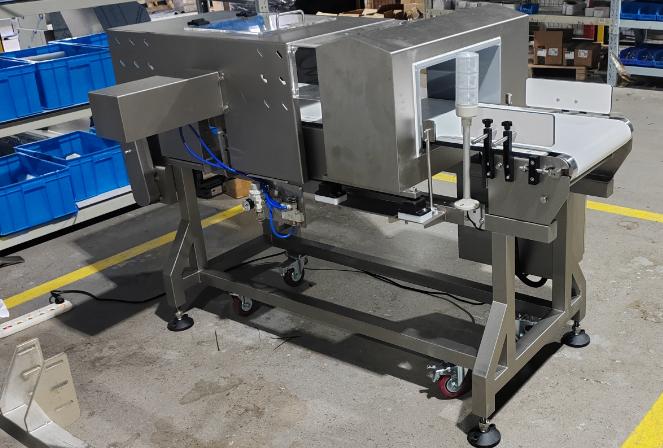

Equipped with a pneumatic push-rod rejection mechanism (blue air pipeline is clearly shown in the photos). When metal contaminants are detected, the push rod smoothly pushes unqualified products into the locked rejection bin without stopping the production line. The thrust is adjustable to avoid damage to fragile biscuit boxes and soft snack bags.

5. Modular Design, Seamless Integration with Existing Food Lines

The compact overall structure does not occupy extra workshop space, and can be seamlessly connected with vertical packaging machines, flow wrappers, cartoning machines, checkweighers and X-ray inspection equipment to form a fully automatic quality control line of "metal detection + weight verification + foreign body inspection".

Standard Technical Specifications

Item	Parameter
Detection Aperture (Customizable)	250×120mm / 300×150mm / 400×200mm
Detection Sensitivity	Ferrous ≥0.8mm, Non-ferrous ≥1.2mm, Stainless Steel ≥1.5mm
Conveyor Belt Width	200/300/400mm (customizable)
Maximum Line Speed	60m/min
Rejection Mode	Pneumatic push rod (air blow / swing diverter optional)
Power Supply	220V/1P 50/60Hz
Air Source Requirement	5–8bar
Operating Temperature	-10℃ ~ 45℃
Certifications	CE, ISO9001, FDA food contact compliance

Real Customer Success Case: Indonesian Snack Manufacturer Cuts Waste & Passes Retail Audit

Client Profile

PT. Snackindo Makmur, a well-known snack manufacturer in Jakarta, Indonesia, mainly produces potato chips, wafer biscuits and candy sticks with aluminum foil composite packaging, supplying local large supermarket chains and convenience stores, with 8 high-speed packaging lines.

Core Pain Points Before Cooperation

Severe false rejection: The old single-frequency metal detector had a false rejection rate as high as 7.5% for aluminum foil packaged chips, resulting in waste of nearly 1.2 tons of finished snacks every month, with annual loss of more than $58,000.
Contamination complaints: Metal shavings from slicing equipment occasionally missed detection, leading to 3–4 consumer complaints per quarter, and the supermarket issued a rectification notice.
Non-compliant audit: The old equipment had no standardized data recording function, which failed to meet the food safety traceability requirements of local BPOM certification and supermarket supplier audit.

Fanchi-tech Customized Solution

After on-site line investigation and actual product sensitivity test, we provided 6 sets of multi-frequency food conveyor metal detectors, matched with 300mm wide conveyor belt and soft push-rod rejector suitable for snack bags. Our technical team completed remote debugging and operator training, and optimized the detection parameters for aluminum foil packaging products one by one.

Quantifiable Results After 8 Months of Operation

The false rejection rate dropped sharply from 7.5% to 0.35%, reducing finished product waste by about 1.14 tons per month and saving more than $55,000 in raw material costs annually.
Zero metal contamination complaints were received, and the supermarket supplier qualification was successfully renewed, and 2 new chain store supply contracts were obtained.
The automatic data recording function meets the traceability requirements of BPOM certification, and the factory successfully passed the annual food safety audit at one time.
The stainless steel washdown structure is convenient for daily cleaning, and the maintenance workload is reduced by 60% compared with the old equipment.

“We had been troubled by false rejection of aluminum foil packaged snacks for a long time. After replacing Fanchi-tech’s metal detector, the waste was almost eliminated, and the detection stability is very good. Their team also provided very patient remote guidance, which helped us pass the supermarket audit smoothly.”

— Mr. Aditya, Production Manager, PT. Snackindo Makmur

High-Frequency RFQ Questions From Global Food Buyers

Q1: What food products is this conveyor metal detector suitable for?

A: It is widely used in all kinds of packaged food production:

Snack food: potato chips, nuts, candies, biscuits, puffed food, energy bars
Baking & pastry: bread, cakes, mooncakes, frozen dough
Condiment & grain: spice powder, rice, flour, cereal, sauce bags
Ready-to-eat food: frozen dumplings, instant noodles, pre-made dishes

We also provide gravity fall metal detectors for powder/granule materials, pipeline metal detectors for sauce/slurry, and online checkweighers to form a complete quality control scheme.

Q2: Can it detect metal inside aluminum foil or metallized film packages?

A: Yes. Our multi-frequency digital detection technology can effectively suppress the signal interference of metal packaging materials, and accurately identify tiny metal foreign bodies inside aluminum foil bags, aluminum-plastic composite films and tinplate cans, which is the core advantage over ordinary single-frequency metal detectors.

Q3: Can the equipment be washed with water? Does it meet food hygiene standards?

A: The whole machine is made of 304 food-grade stainless steel with sealed electrical components, which supports daily water flushing cleaning. It meets FDA food contact standards and HACCP system requirements, and is suitable for food production workshops with regular cleaning needs.

Q4: Can you customize the tunnel size, conveyor length and rejection method?

A: Full customization service is supported. We can adjust the height and width of the detection tunnel, conveyor width, overall line height and rejection form (air blowing / push rod / swing baffle) according to your product size, production line speed and workshop layout.

Q5: Where can I watch the actual operation video of the equipment?

A: Welcome to our official YouTube channel to view factory test videos and overseas customer on-site operation cases:

https://youtube.com/@fanchitech3323?si=gyh-f9JCbjkJ3tEu

Why Choose Shanghai Fanchi-tech Machinery

Professional R&D and manufacturing: With 12+ years of focus on food safety testing equipment, each metal detector undergoes 72-hour continuous aging test and sensitivity calibration with actual materials before delivery.
Full product line solution: We have conveyor metal detectors, gravity fall metal detectors, pipeline metal detectors, checkweighers, X-ray foreign body detectors and other products to meet the quality control needs of the whole food production process.
Global intimate service: Dedicated sales engineer Kerry provides one-to-one pre-sales scheme design, free virtual product testing, detailed technical drawings and factory direct quotation support.
Complete customs clearance documents: We provide CE, ISO9001, ISO14001 certificates, commercial invoice, packing list and factory test report to ensure smooth customs clearance in countries around the world.
